Flat Bottom Radius Arm / Coil Mounts

  • Sale
  • $99.99
or
  • Item # BRK-1050-1
  • We currently have 2 in stock.




    Flat Bottom Radius Arm and Coil Mounts
    Higher Clearance For Custom Suspension

    Radius arm / coil mount with retainer - Allows a flat bottom for higher clearance under axle. Cut from 1/4" plate. Bolt holes are 9/16". 7 inches of separation between mounting holes, designed for use with any coil spring with a 5.5" flat footprint or larger. For use with 5.5" wide Jeep TJ springs. For use with our 3" wide poly bushings. Includes 2 brackets to complete one axle.


    What's Included
    Two (2) Brackets
    Two (2) Spring Retainers

      Customer Reviews

      Based on 9 reviews
      89%
      (8)
      11%
      (1)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      J
      J.
      Would work better for parallel 4 link.

      The construction is great. Cut is precise, they are really heavy duty, and quality steel. The upper mount needs some bracing for side to side stability, in my opinion. I had wanted to run a simple radius arm setup, but after mocking this in place using a couple of hiems and a bushing I had virtually no articulation. Not that you get a ton out of a radius arm setup, but the 7" separation and being directly vertical of one another seems to have made it a bit worse. If I had room I would use these in a heartbeat for 4 link brackets. Unfortunately I am going to do some more mods and run a 3 link instead.

      I would like to add that I have purchased a good number of products from ballistic and they are always high quality and exactly what I expected to get. Just in this instance my hopes of a decent functioning radius arm setup were dashed by the math. :(

      S
      S.S.
      5/5

      Flat Bottom Radius Arm / Coil Mounts

      A
      A.B.
      Looks good

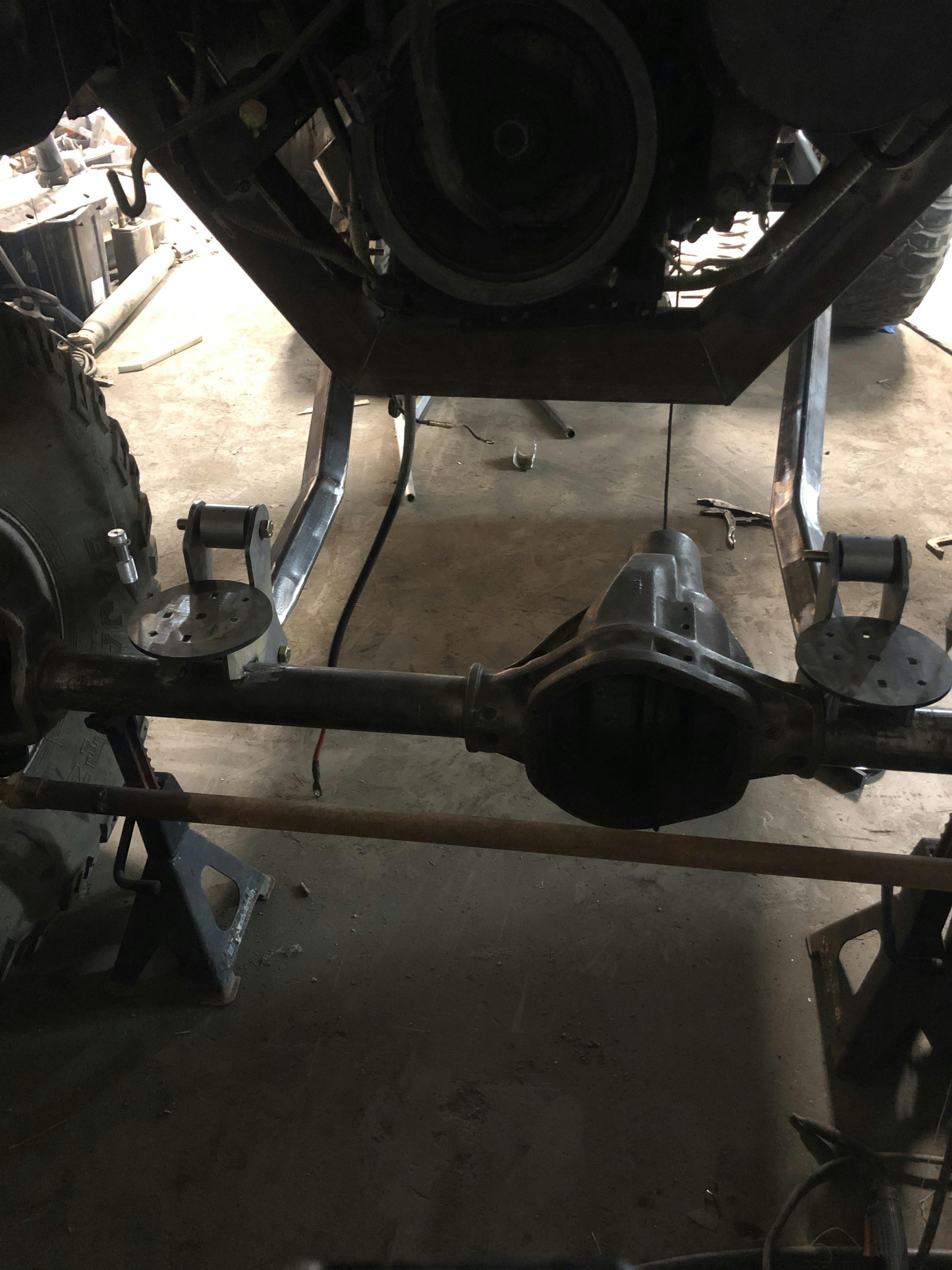

      Ive only mocked them up, but they seem like they will work well

      S
      S.
      Great job

      Fast shipping great package and great finishing on the product

      D
      D.W.
      coil mounts

      the mounts worker great there was easy welding and mounting and work great
